Aqua Graph MK Ib

Enicar_Aqua_Graph_MKIb_dial_front
Enicar Aqua Graph MK Ib



The Aqua Graph Mark Ib likely appeared in the year 1965 and was like a transitional reference between the Ia and the II. It allready has all the design elements of the MKII, but still uses the old case with the old reference system (072/002).

Reference Number: 072/002

Serial Range: 706.6xx – 706.8xx & 722.2xx – 722.5xx

Case

Stainless steel EPSA compressor case with bajonet lock.

40,6mm x 49,5mm without crown, 14mm thickness, lug width 20mm

Bezel

The bezel of the Mark Ib is counting up from 0 to 60. 10, 20, 30, 40, and 60 is written in bigger number than the 5min steps. Every minute has a dash as indicator. The bezel itself is made of aluminum with a black surface and numbers in silver.

At 12 o’clock you will find a vertical trapez borderd by two tritium lume spots.

The bezel is freely turning without clicks.

Enicar_A_redring

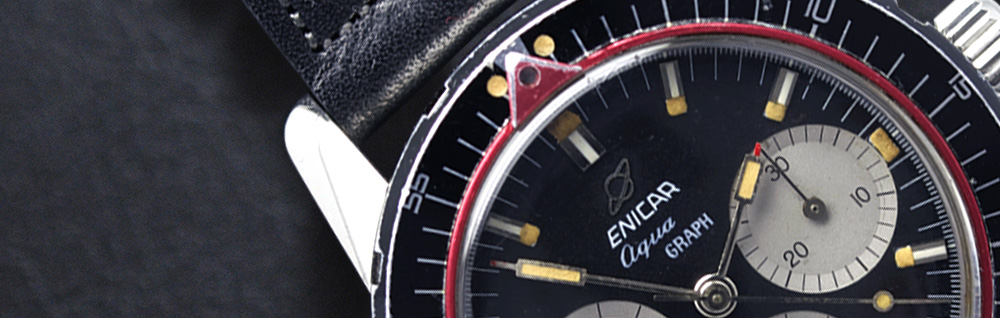

Bezel with two lume spots at 12 o’clock and red triangle pointer

Red Ring

Made of red eloxed aluminum the tip of the ring is formed like a triangle. The ring is freely turning from the bezel.



Dial

The MK1b comes with two different dials: black and black-grey. The early ones mainly shows the black dial, the later ones are commonly known with the black-grey dial which is the same as in the reference MK II.

Enicar_Aqua_Graph_MKIb_dial_1
MK Ib Dial Comparison (Black; Black-Grey)



Also interesting is the difference between the black dial of this reference and the MK1a. The apllied Enicar Logo is a bit smaller on the MK1b and the left sub has a different design. Also the „T“ for tritium is now at 6 o’clock together with the „Swiss made“ letters.

Enicar_Aqua_Graph_MKIb_dials_2
MK1a and MK1b black dial comparison



Hands

The hands are very similar compared to the MK Ia, except for the subdial hands.

Minute and hour hand are formed like a paddle (paddle style) and are very common for Enicar watches of the beginning and mid 60’s. They are unpainted with rectangle tritium lume and an orange tip. The orange tip is shorter than on the MK1a reference.

The second hand is mainly unpainted with a round lume spot right before the tip.

The subdial hands are unpainted and thin. They are also shorter as on the predecessor references.



Enicar_Aqua_Graph_MKIb_hands
Aqua Graph MK 1b handset

Crown

Since the Aqua Graph was meant to be a diving watch you will find the waffle compressor crown with Enicar saturn on it.

Back

The back shows the old Seapearl logo with the seapearl in the middle.

Enicar_Aqua_Graph_MKIb_back
Seapearl logo on the back

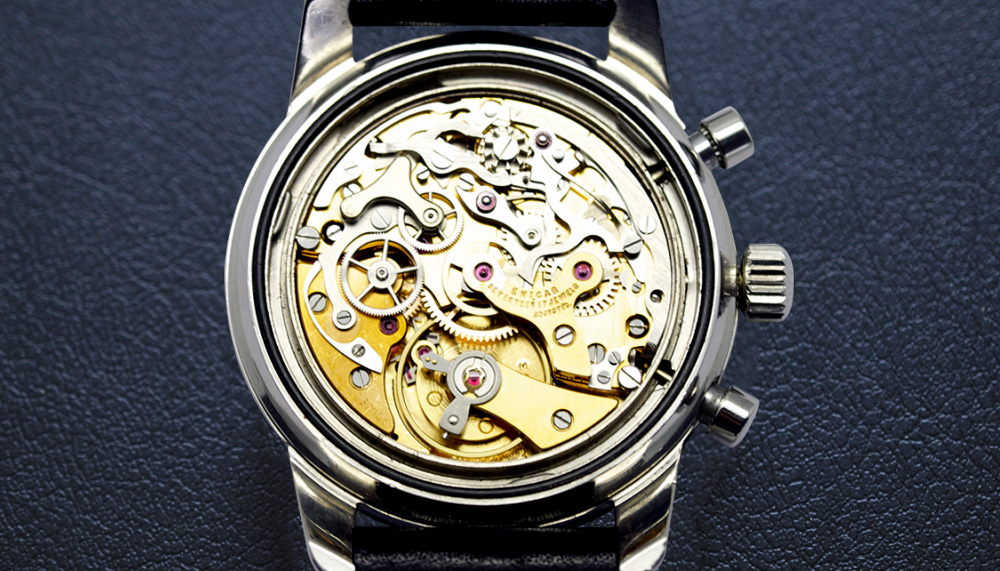

Movement: Valjoux 72 with golden finish

Enicar_Aqua_Graph_MKIb_movement
Enicar Valjoux 72
